Automatic Ceiling Mounted Type

  1. Home
  2. Automatic Ceiling Mounted type details

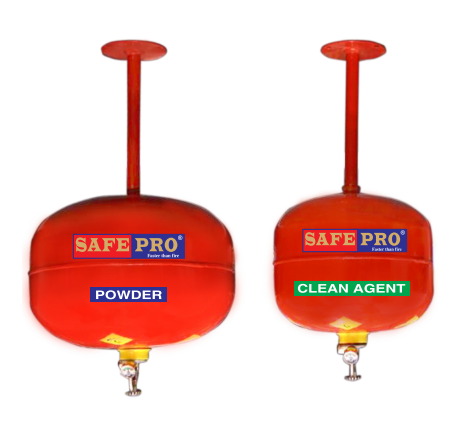

Automatic fire extinguishers are ideal for use in unoccupied rooms ir areas and can be used to provide fire safety protection in an enclosed space.
  • Available with ABC Powder, Water and Clean Agent gas Extinguishers.
  • Supplied complete with temprature activation bulb (68°c) which activates the fire extinguisher when the temprature is reached.
  • Wide range of uses including unattended areas, storage rooms, server rooms, engine compartments.
MODEL 02Kg 05Kg 10Kg 15Kg
DESIGN Ceiling mounted Ceiling mounted Ceiling mounted Ceiling mounted
AVERAGE DISCHARGE TIME 4-5 sec 6-8 sec 10-15 sec 15-20 sec
HANGING HEIGHT ABOVE RISK 1.5 Mtr 1.5 to 2 Mtr 1.75 to 2.25 Mtr 2 to 3 Mtr
AREA PROTECTION 1 to 1.5 m2 2 to 2.5 m2 4 to 5 m2 5 to 6 m2
VOLUME PROTECTION 2.5 m3 6 m3 10 m3 15 m3
AVERAGE % DISCHARGE 99% 99% 99% 99%
OPERATING TEMPRATURE 68°c 68°c 68°c 68°c
SERVICE / TEST PRESSURE 15 / 35 BAR 15 / 35 BAR 15 / 35 BAR 15 / 35 BAR
EXPELLING AGENT NITROGEN / Clean Agent NITROGEN / Clean Agent NITROGEN / Clean Agent NITROGEN / Clean Agent
