DCP Powder Type

  1. Home
  2. DCP Powder type details

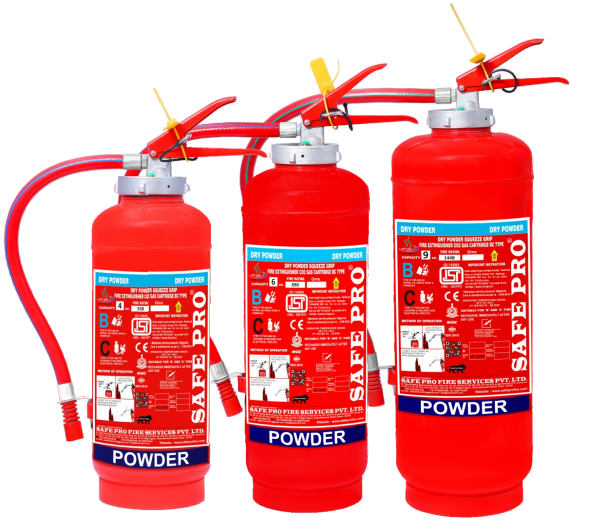

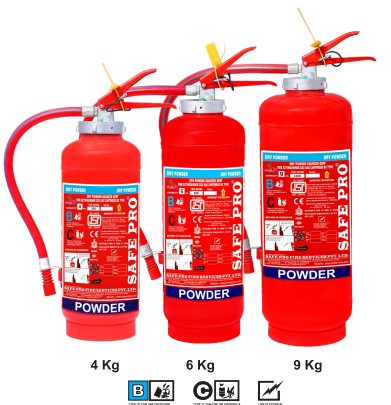

DCP Powder fire extinguisher are ideal for use on Class, B and C Fire Risks. The powder fire extinguisher are available in 4kg, 6kg and 9kg standard versions. This model is designed to extinguish 'B' and 'C' tpyes fires involving material like Petro Chemical products, Paints, Resins, Varnish, Gases in the compressed from like Oxygen, Acetylene, LPG & CNG.

PERFORMANCE & FEATURES

  • ISI Marked
  • 1 year warrenty
  • Safe for use on live electrical equipment
  • Squeeze grip opearion
  • Fully refillable
  • Controlled discharge
  • Supplied with wall bracket
  • Full range of spare parts are available
MODEL 6Kg BC 9Kg BC 4Kg BC 6Kg BC 9Kg BC
CYLINDER MATERIAL M.S. M.S. M.S. M.S. M.S.
FIRE RATING 89B 233B 55B 89B 144B
EXTENGUISHING MEDIUM As Per IS 4308 As Per IS 4308 As Per IS 4308 As Per IS 4308 As Per IS 4308
TEMPRATURE RANGE -30°c to 60°c -30°c to 60°c -30°c to 60°c -30°c to 60°c -30°c to 60°c
DISCHARGE TIME(Sec) MORE THAN 13 sec. MORE THAN 13 sec. MORE THAN 13 sec. MORE THAN 13 sec. MORE THAN 13 sec.
DISCHARGE RANGE(Meters) MORE THAN 02 Mtrs MORE THAN 02 Mtrs MORE THAN 02 Mtrs MORE THAN 02 Mtrs MORE THAN 02 Mtrs
OPERATING PRESSURE 15 BAR 15 BAR 15 BAR 15 BAR 15 BAR
TEST PRESSURE EXPELLANT 35 BAR NITROGEN 35 BAR NITROGEN 35 BAR CO2 35 BAR CO2 35 BAR CO2
CO2 CARTRIDGE CAPACITY(grams) --- --- 120 120 200
